Engineering a procedural voxel world in Python

00What it looks like

Screenshots from the game itself, taken through the real GPU path at 1280×720 (the on-screen guide and HUD left in). Click any one for full size.

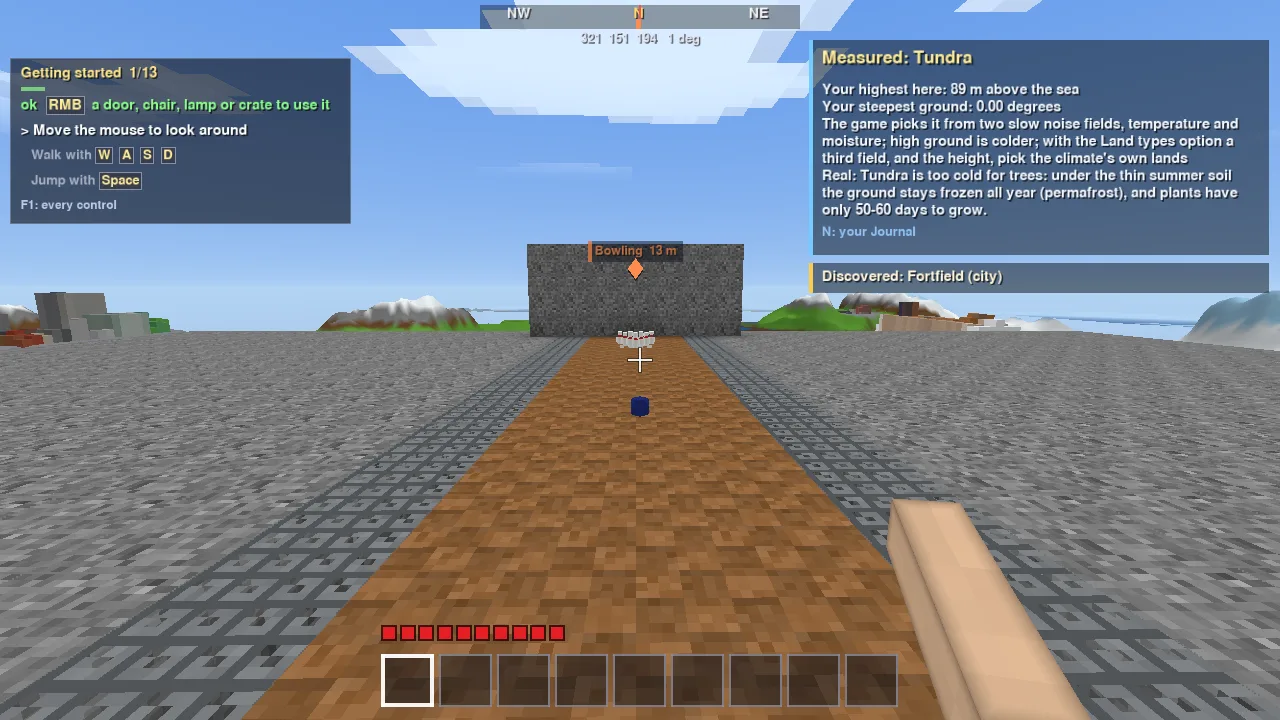

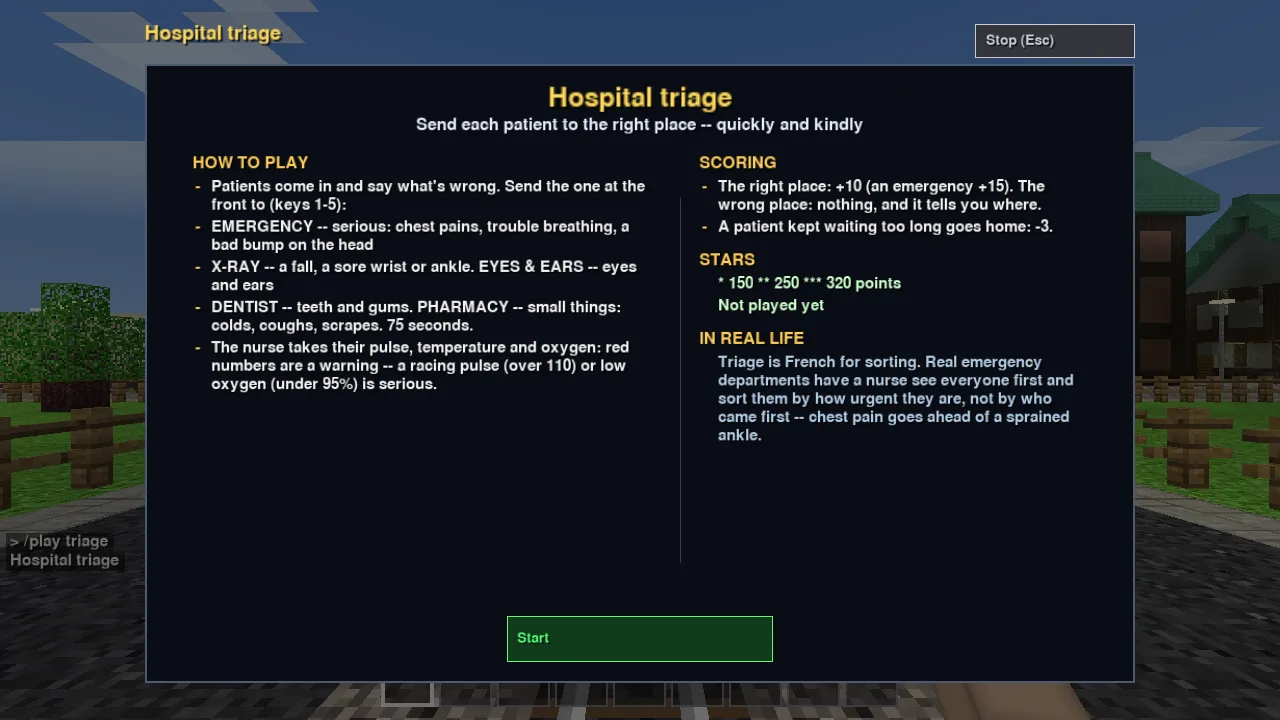

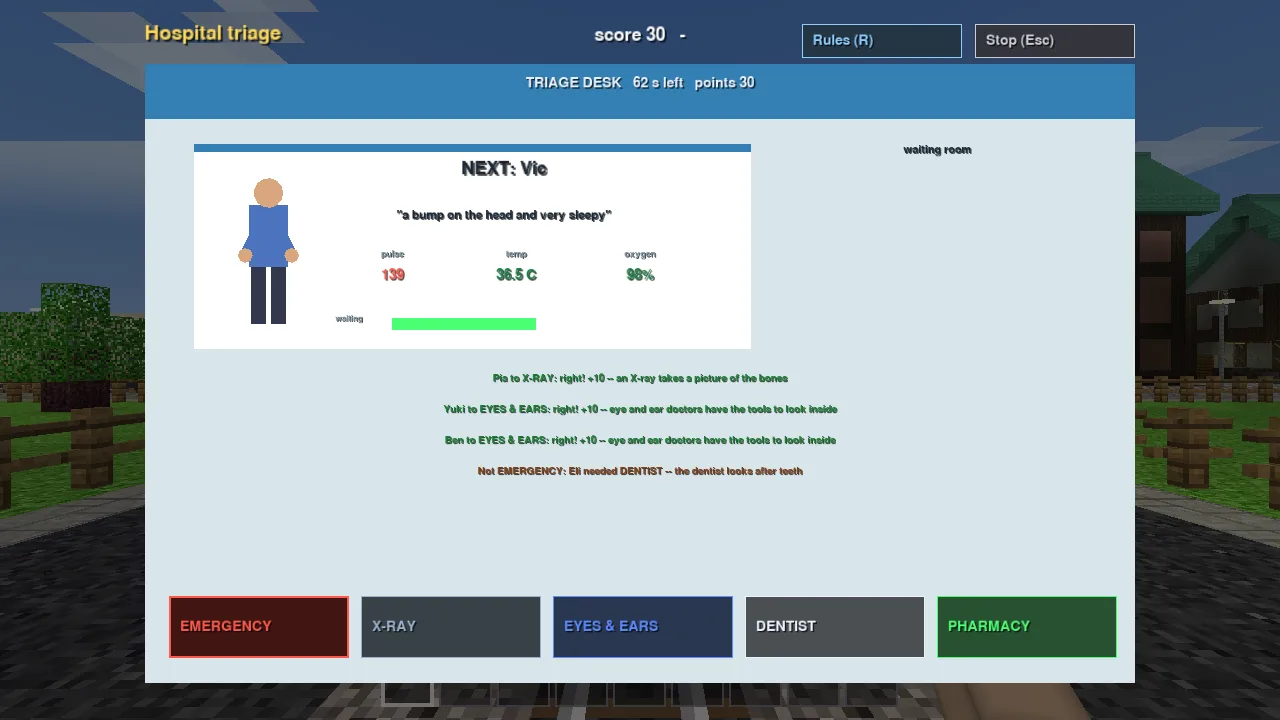

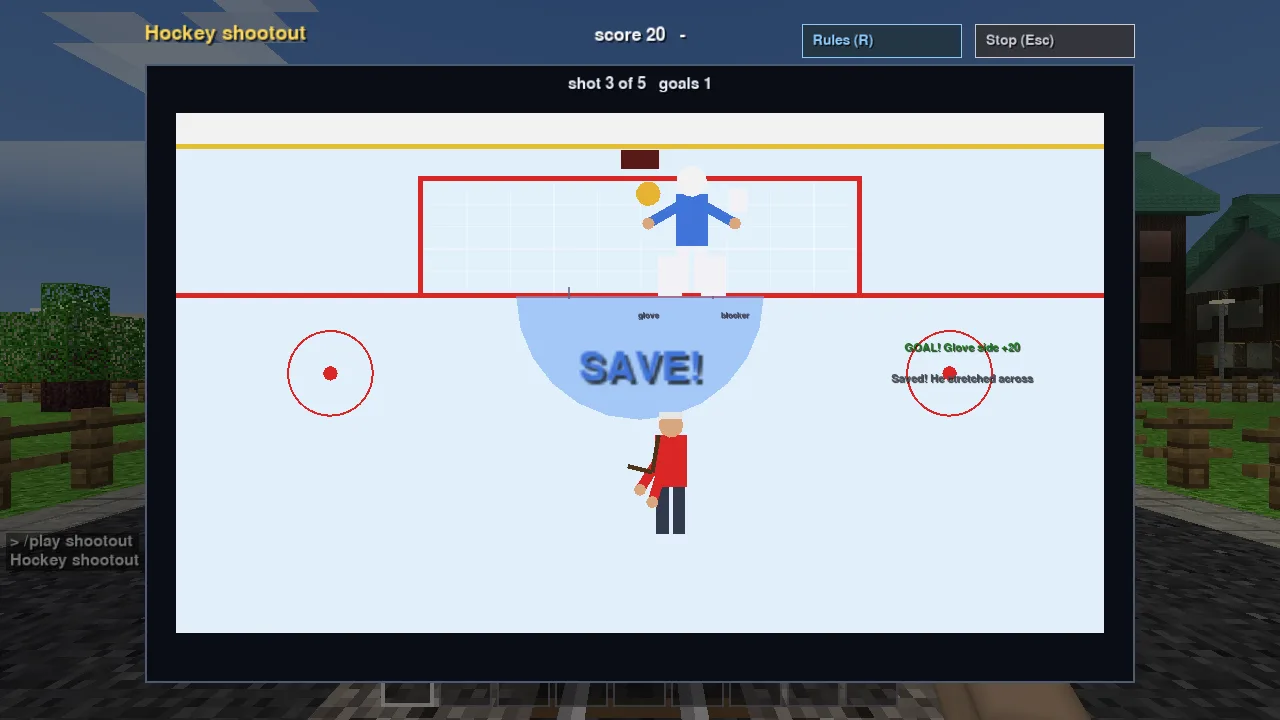

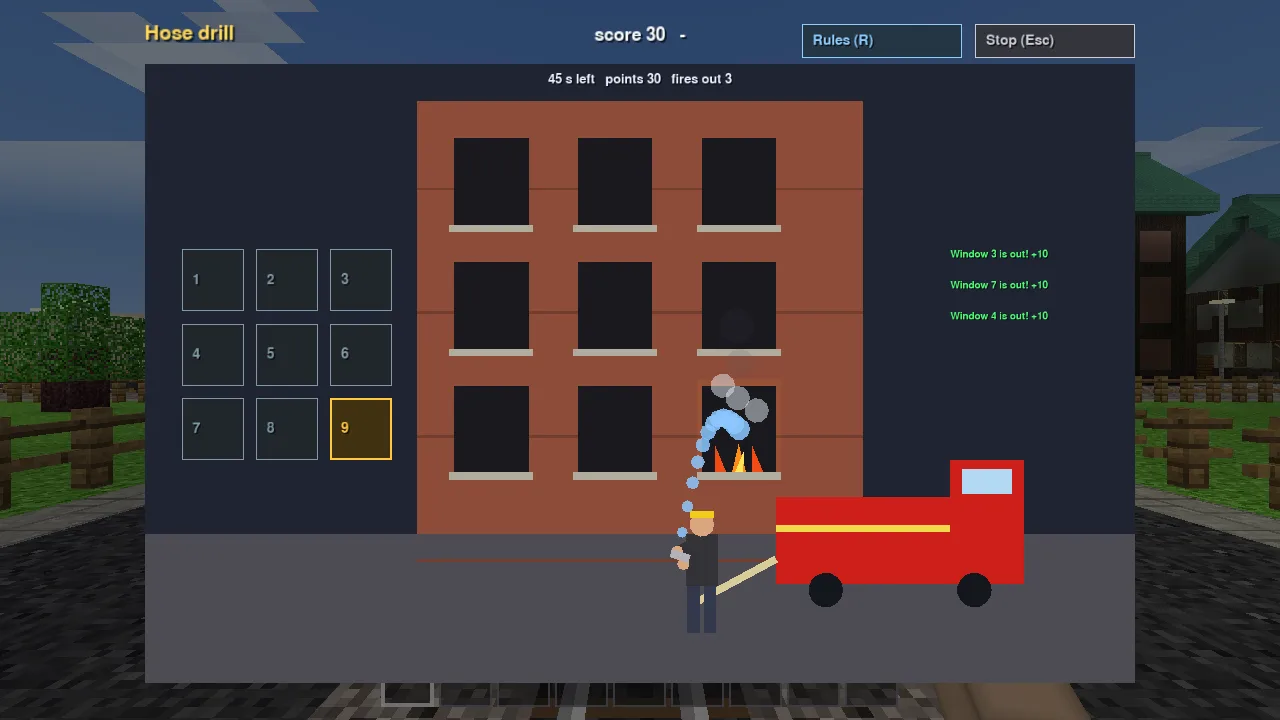

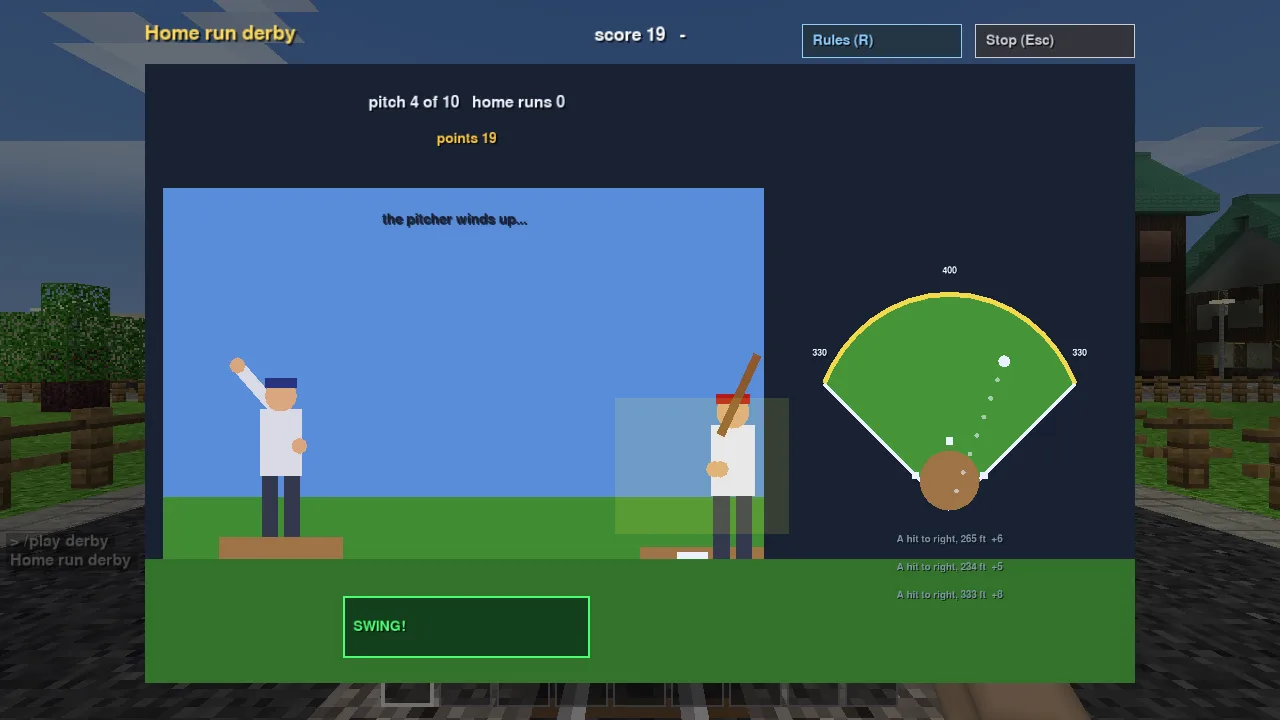

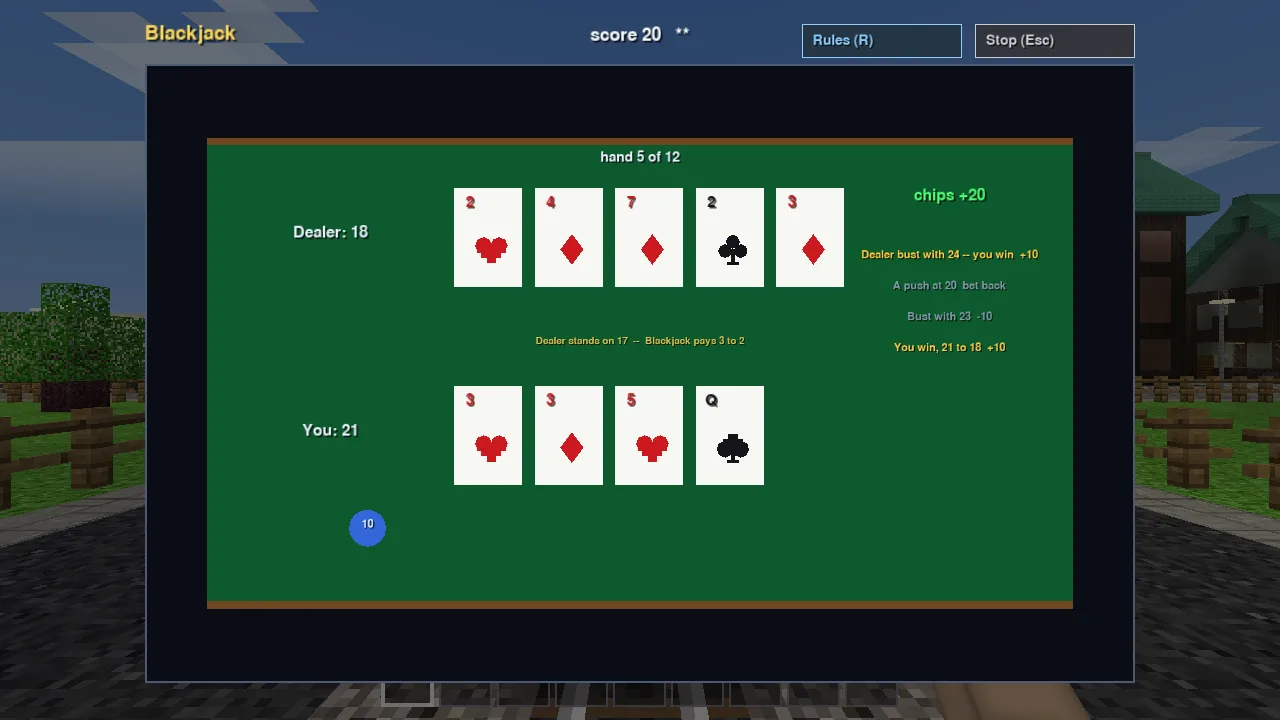

Recent work: games in the world

The latest captures: physics games played in the world itself, and the screen games at the venues that host them. Same GPU path, 1280×720.

01The system at a glance

VoxelBlox is an open-world voxel sandbox: dig, build, drive, fly, travel to orbit. Three constraints shape everything else. The world is endless and fully editable. Content is procedural and code-defined: there are no asset files, so a texture, a sound effect, a town and a cruise ship are all programs. And the codebase is maintained by one developer, so the architecture has to keep a large surface area safe to change without a team's worth of review.

Much of the design is a single-developer answer to problems a studio would solve with process and headcount. Where a team relies on code review to catch a broken invariant, this codebase encodes the invariant in one function or one registry and gates it with a check. Where a team would keep architecture knowledge in people's heads, it is kept in an engineering log and a lessons file that the gate itself keeps in step with the code.

02Architecture decisions and trade-offs

The significant decisions, in the spirit of lightweight architecture decision records: what was chosen, what it costs, and the alternative it was weighed against. Each has a dated entry in the engineering log with the measurements behind it.

03Verification strategy

With one developer and a fast-moving codebase, the test suite has to catch what review would. Its central idea is borrowed from mutation testing and applied to every assertion rather than sampled across the codebase.

• Witnessed checks (mutation testing by hand). Every assertion is shown to fail: a tool reverts the one line it protects, runs the check, requires it to go red, and restores the line. Tools like mutmut or Stryker sample mutations to score a suite. Here each check is proven individually when it's written. A check that can't be witnessed is either redundant or asserting the wrong thing, and both turn up more often than you'd expect.
• End-to-end through the player's path. Checks drive keyboard and mouse events through the real event handler and frame loop, then assert on observable state: positions, pixels, scores. Internal flags are not evidence.
• Oracles and golden images. A slow reference mesher in plain Python is the oracle for the compiled one (face for face). Every fast render path keeps its fallback, and a check requires identical pixels between them.
• Property and robustness testing. Seeded fuzzing plays the game through the input path, and a crash leaves a replayable recording. The compiled kernels run under bounds checking on fuzzed inputs to prove no out-of-range write.
• Simulation-based balancing. Each of the eighteen screen games has a careful bot, a careless bot and a learned player. Difficulty is tuned by cross-entropy optimisation against target star ratings, and a gated check requires the careful player to beat the careless one by a margin and the learned player to stay human-fair.
• Static checks for what runtime can't reach. Some code only runs while a frame is drawn, which most checks never do. The source is parsed and checked for known failure shapes (see the first incident below).
• Docs as code. A documentation check fails the gate when a documented command, check name or scene no longer exists, and a code-map check fails when a module doesn't state its purpose.

Designing for learning

The game is meant to teach how things work, so learning is engineered like any other feature: measured, gated and fed by the game's own data.

• Feedback from what actually happened. Each game model records the moments a teacher would comment on (a blackjack decision against basic strategy, a swing 90 ms early, a penalty taker who always goes left). After the round a coach turns them into one to three specific lines: "9 of 15 decisions went against basic strategy, e.g. DOUBLE on 18 against a 7; the book says STAND." The same lines return on the next rules page.
• Coverage as a gated property. Every building type and every person in the world teaches a topic; every game has rules, scoring, a real-world note and a coach; every vehicle job has a note on how the real job works. Each is a check, so new content can't quietly arrive unexplained. That check caught eleven building types and thirteen staff roles added without anything to teach.
• Learning by doing. Topics are taught at the moment they become relevant: a first game of darts teaches darts, a first bank deposit teaches how banks lend, walking into an aquarium teaches why its windows are 30 cm thick.
• Honest numbers, derived rather than typed. The slot machine uses a real reel strip of 22 stops and a pay table. Its payback (93.1%) is not a constant someone typed: it is computed by enumerating all 10,648 combinations of stops, and the machine's glass, the rules page and a 30,000-spin check all read that one function. Because the only skill in a slot machine is knowing when to stop, the star rating rewards keeping to a loss limit. It plays with pretend chips the casino hands out once a game day. The bowling scoreboard follows the same pattern: one pure function turns the balls into the marks and running totals an alley monitor shows, and a total waits for its strike or spare bonus exactly as the real sheet does. It is drawn at a readable minimum size, because a 3.2-metre sign seen from the approach is only about 90 pixels wide.

04Observability and performance engineering

• Frame budgets, measured in the real loop. A performance tour drives one world through the actual frame loop to its most expensive places (a metropolis, a launch in progress, a jet low over mountains) and reports percentiles, the subsystem that dominates slow frames and CPU time by function. A fixed benchmark is saved per machine so hardware can be compared.
• Spike reports. Any frame over 250 ms captures what it was doing and its stack. Frame-time logs attribute each spike to the game, the OS, the display or a travel load.
• Crash reports you can replay. A crash writes a report with the recorded input and a snapshot of the save. A replay tool re-runs it headless and exits 0 when it reproduces, which turns a player's bug report into a test case.
• Profile to rank, instrument to size. The profiler finds the candidates; targeted timers give the numbers that go in the log. In practice the cost is almost always redundant work, not a poor algorithm: the next sections show a per-building search every two seconds costing a 667 ms frame.
• Resource governance on shared hardware. The development GPU also serves a desktop and local AI inference. A machine-wide lock allows one rendering run at a time, helper processes die with their parent, and every run reports the driver faults logged during it. It's an SRE habit (know your blast radius) applied to a workstation.

05Delivery model: from request to done

The workflow is deliberately lightweight, but it has the traceability of a larger process:

1. Requirements in the stakeholder's words. Each request becomes a row in an open-items file, quoted verbatim, with its status, the checks that prove it and how to try it. A row closes when the feature is confirmed in the product, not when tests pass: definition of done as acceptance, not as a build status.
2. A branch per change, trunk kept releasable. Merges require the targeted checks, the documentation check and the code-map check to pass. The full suite runs in parallel workers on demand.
3. An engineering log as the decision record. Every change ends with a dated entry holding the evidence (the measurements, what was tried, what was rejected), and a one-line lesson, tagged by area, in a lessons file that's read before touching that area again.
4. Every job leaves a tool. A question that was hard to answer once becomes a tool that answers it always: 41 so far, all on one result protocol with JSON output, saved baselines and comparisons, and one local web page that runs them.

06Incident reviews

Blameless, short, and focused on the detection gap: why the existing checks didn't catch it, and what now does.

07The rendering engine

The engine's problem statement: draw an endless, editable voxel world at a few milliseconds a frame when the host language pays heavily per call. The answer follows the direction the industry has taken since the mid-2010s: compute on workers, GPU-driven submission, and as few API calls per frame as possible.

08The stack, and why Python

VoxelBlox is Python 3.13 with pygame for the window and input, moderngl for OpenGL (3.3 core, 4.3 where the card has it), and numba compiling the heavy loops over numpy arrays. There are no asset files: every texture, model, sound and piece of music is generated in code at load.

Python is slow per call, so the whole design follows one rule: Python touches single blocks; numba touches many. Generation, lighting, meshing, raycasts over many rays and bulk queries are compiled kernels over arrays. Python orchestrates, handles the player's own edit, and issues as few GL calls as possible. A browser port was researched and declined; Windows + Python + numba was a deliberate choice.

09The world's data

The world is a grid of columns, 16×16 blocks wide and 384 tall (y from −128 to 255: under y 0 lie 128 blocks of deep rock, magma and mantle). A column is keyed by integer cells, (x >> 4, z >> 4), never by Python object identity (Python reuses ids, and a sister project once collapsed 8 missiles into 2 that way).

• A cell is two bytes and a byte: a uint16 block id and a uint8 state (facing, water level, upside-down). Anything that stores or sends blocks carries both: the world, the journal, saves, the network, blueprints.
• Light is a byte per cell: sky and block light, flooded by a numba kernel.
• Floating origin: every vertex is column-relative, and the camera offset is subtracted in float64 on the CPU. The view matrix is rotation only, so float32 never sees a large coordinate. A check renders the same scene at the origin and at 30 million blocks out: 93 of 57,600 pixels differ.
• Endless by construction: generation is a pure hash of int64 coordinates, so any column regenerates identically, in any order.
• The journal is the save: per column, only the cells that differ from generation. What you build stays built across unload, reload and save.

At render distance 32 the raw columns would be 1,114 MB. A ColumnStore keeps columns beyond the near ring zlib-packed (blocks about 30×, meshes about 3×) and unpacks them on read: 181 MB.

10Generation and streaming off the main thread

The terrain kernel, the light flood and the mesher are all compiled nogil, so they run truly in parallel on a thread pool (cores − 2, at most 8) while the main thread gathers inputs and integrates results. Output is byte-identical to a single thread. Loading at render distance 16 went from 1.97 s to 0.78 s.

Two lessons shaped the scheduling:

• Ground where the player is comes first. Flying fast at render distance 18, generation once held every worker slot until the whole ring (~1,300 columns) was generated, and the ground within 4 columns fell to 0% drawn. Now never-drawn ground near the player gets half the workers as soon as it's ready: 100% drawn at 40 m/s, and the whole view in 2–3 s when stopped.
• The deep is meshed only round the player. Digging straight down once lowered the mesh floor for the whole view and re-meshed about 1,000 columns on the main thread: a one-second freeze per step. Now the deep is meshed in a zone 4 columns round the player that follows a tunnel, and a dig re-meshes only what that edit dirtied: 148 ms → 8 ms a dig.

11Meshing: 12 bytes a vertex

The mesher takes a column padded by one cell on every side (258 × 18 × 18), so faces on the border cull against the neighbours and ambient occlusion and smooth light see across the seam. It emits 4 vertices a visible face, each six int16:

// 6 x int16 = 12 bytes a vertex
x, y, z      column-local corner, in 1/16 block (shaped blocks need the sixteenths)
layer        texture layer in a sampler2DArray (every texture generated at load)
info         face:3 | ao:2 | sky:4 | flow:4 | glow:1 | fluid-surface:1
block light  0-15, flooded by the light kernel

• Per-vertex AO from three neighbours; a quad whose AO is anisotropic is emitted rotated by one vertex so its diagonal follows the light (otherwise it shows as seams).
• Fluids are drawn at their level: each top corner is the mean surface height of the fluid cells sharing it, so neighbours meet exactly and runs slope downhill. The flow direction (8 ways, or falling) rides in 4 spare bits, and the shader scrolls runs, pours falls and churns lava.
• Shaped blocks (stairs, doors, furniture, wedges for 45° slopes) are box models turned by the cell's state, lit with the same corner light as a full cube so a hillside of slopes shades like the blocks round it.
• One shared index buffer (0,1,2, 0,2,3 per quad) serves every mesh.
• A slow reference mesher in plain Python is the oracle: a check requires the numba mesher to match it face for face.

12The terrain in one draw call

In Python, every GL call costs real CPU time, so the aim is to keep terrain to a handful of calls. All column meshes live in one arena buffer, sub-allocated first-fit in spans of 64 quads and doubled on the GPU when full. Each frame, numpy culls the columns against the view (six planes against every column's box at once), sorts them near-first, and writes one indirect command per visible column:

# one row per visible column: (count, instances, first index, base vertex, base instance)
cmd = np.zeros((n, 5), dtype=np.uint32)
cmd[:, 0] = (quads - wet) * 6        # the dry quads' indices
cmd[:, 1] = 1
cmd[:, 3] = base                     # where this column's vertices start in the arena
cmd[:, 4] = np.arange(n)             # baseInstance -> this column's camera-relative offset
vao.render_indirect(commands, moderngl.TRIANGLES, count=len(cmd))

Each column's camera-relative offset is a per-draw attribute read through baseInstance, so the floating origin survives without one uniform per column. The whole terrain is one glMultiDrawElementsIndirect; water is a second, sorted far-first for blending, from the wet quads kept at the end of each column's mesh.

The per-column path (GL 3.3: one buffer and one draw per column) stays as the fallback, and a check requires the two to render identical pixels (0 of 57,600 differ). Paired smoke runs: terrain draw 2.01 / 2.17 ms per column → 1.78 / 1.77 ms multi-draw, and the p99 frame 11.0 / 8.8 ms → 5.7 / 5.9 ms.

Upload only what changed. A sister project once re-uploaded a 112 MB terrain every frame while streaming and fell from 40–50 FPS to 1–4. Here a new mesh is written into its span with a byte offset, and nothing else moves.

13The far land, and the holes a jet outruns

Beyond the meshed columns, a far land of coarse height tiles (a region each) runs out to the horizon, built on the workers from the same generation rule the columns follow. Towns, cities and megastructures appear on it: each tile samples the heights of its structures' own voxel programs, coloured by their top blocks.

• One call for all tiles. The tiles live in an arena too, with a shared index buffer (fine grid, coarse grid, box pattern) and one render_indirect. At 4 km: 228 calls → 1, CPU 0.5 → 0.2 ms, pixel-identical to the per-tile path.
• The holes pass. Flying the jet at 112 m/s at render distance 18, the ground was only drawn 98–114 m ahead (p5; p50 165–178 m): the far land's shader discards everything inside the render distance because "the columns are drawn there", and where they weren't yet, there was sky. The fix draws the far tiles again inside the ring, depth-tested with the columns' own projection, keeping only fragments over a column that isn't on the GPU yet. That's an R8 texture with one texel a column (u_cover), rebuilt only when a mesh comes or goes. Holes went from 4.8% of the view to 0.01%, and the ground is drawn to the full 1,800 m ahead (p50).

14Occlusion: letting the depth buffer do it

Eniko Fox's excellent software-rendered occlusion culling in Block Game rasterises nearby opaque blocks into a small CPU depth buffer and skips hidden chunks, cutting a lot of chunks (50–60% above ground, up to 95% in caves). It's a great fit for an engine that pays per chunk it draws.

VoxelBlox made the opposite call, for two reasons:

1. The draw calls are already gone. All visible terrain is one indirect call, so skipping a column saves only GPU vertex work, not CPU time per chunk. The CPU cost of drawing doesn't grow with the number of columns in view.
2. A CPU occlusion test where the GPU writes depth was a bug as well as a cost. In the sister project, VoxelStrike, machines blinked as they crested hills: the CPU's answer lagged or disagreed with what the GPU drew. The rule since: where the GPU writes depth, the CPU never tests occlusion.

15Frame pacing and the CPU side

The first windowed profile had p50 16.6 ms but p99 35–57 ms, while the logged work summed to ~6 ms. Every spike was in flip: the driver's windowed vsync stalled 2–4 refreshes. With vsync off, p99 was 5.6 ms. So the game paces itself: sleep, then spin the last 1.5 ms, at the monitor's rate, and the result was 15.15 ms intervals with 0.00 jitter over 1,125 frames.

On the CPU, profiling ranked things nobody would guess:

• The HUD: 800k tuple appends plus np.array over them was 2.6 ms of a 4.2 ms draw. A flat array('f') and cached label layouts cut draw from 4.2 to 1.1 ms.
• Posing creatures one by one in numpy: batched into one pass (pose_many), identical rows, 1.2 → 0.5 ms. Parked vehicles are posed once per column and uploaded together.
• Resting creatures skip physics until the world changes (41% of creature ticks).
• No full-screen CPU surfaces: UI and effects are GL quads and shader uniforms. A CPU HUD upload once cost 1.1 ms GPU at 1080p and 4.4 ms at 4K.

Net result on the reference smoke world (render distance 8): frame p50 3.88 → 2.69 ms, draw 2.43 → 1.33 ms.

16All the numbers

All figures measured on the development machine and recorded in the project's engineering log with the run that produced them.

17Patterns from adjacent projects

Several of the rules here were paid for first in sister projects. Each one generalises well beyond games.

• Never let two systems answer the same question. In VoxelStrike, a sister voxel game, vehicles flickered on hill crests because a CPU visibility test and the GPU's depth buffer disagreed. The rule since: where the GPU writes depth, the CPU doesn't test occlusion. It's the same principle as having one source of truth in any distributed system.
• Identity is data, not memory addresses. Keying objects by Python's id() collapsed eight missiles into two when ids were reused. Everything is keyed by coordinates or stable names.
• Move deltas, not state. Re-uploading a 112 MB terrain every frame took a project from 40–50 FPS to 1–4. Upload only what changed, into its own slot: the same logic as incremental builds or change data capture.
• Test tooling is production software on the machine it runs on. In a dictation project, a test harness launched a headless browser with a fresh profile each time. Its password manager attempted a blank-password Windows sign-in, and the account locked eighteen times in three days before the cause was found. Harnesses now run from one launcher with a prepared profile, and the event log is the first place to look.
• Shared hardware needs governance. The GPU resets and the account lockouts have one root cause: tools that assumed they had the machine to themselves. Serialise, bound lifetimes, report side effects.

18Should you copy this?

Honestly: copy the techniques and the habits; think hard before copying the language. Here's each piece graded for someone starting their own voxel game.

19What's missing, and what I'd do differently

• Sections and cave culling first. Split columns into 16³ sections, record at mesh time which faces of each section can see each other through air, and walk only open air from the camera. It's conservative, it runs on the workers, and it catches the underground case, where Block Game's article saw up to 95% of chunks hidden.
• Greedy meshing or vertex pulling. The shader already tiles world-space UVs, so merged quads drop in. Vertex pulling (face data in a storage buffer, the vertex shader expanding quads) would shrink the arena further.
• A real sky-light flood. Sky light is exposure from the height map today; a flood would light overhangs and cave mouths properly.
• GPU occlusion, if measured to matter. A compute pass testing boxes against a depth pyramid of last frame's depth, writing the indirect commands itself. The command list is already on the GPU, so it would slot in.
• Measure on more than one machine. Every number here comes from one development PC (a big desktop GPU, played over Remote Desktop). The ratios transfer; the absolute milliseconds won't.

20What's next: faster, then finer

Two research tracks, each item with a measurement to take first and a condition that stops it. Nothing here ships until it beats the current path on more than one machine and matches its pixels.

Faster: first inside Python, then out of it

1. Measure better first. Build a GPU lab tool (per-pass GPU time, quads, overdraw, arena use for every screenshot scene), get a second, weaker baseline machine, and gate frame budgets per system so a regression fails a check instead of being noticed by feel.
2. Sections and cave culling, then greedy meshing and packed vertices, then GPU-driven culling (a compute pass writing the indirect list), each only if the GPU is shown to be the bound.
3. The known CPU cost: the per-column feature passes still on the main thread while streaming, and the per-object Python work (creatures, people, vehicle tools) that grows with the scene.
4. Leaving Python, piece by piece. Replace the numba kernels one at a time with native ones (Rust or C++, called from Python), each behind a setting beside its twin and required to produce byte-identical output: the mesher first, since its reference oracle already exists. Only when the kernels are native, profile again and decide whether the renderer and streaming core should follow. A full port to an engine would be the last resort, because it throws away the tools and checks that made this work.
5. A second graphics API (wgpu: Vulkan, Metal, DX12) behind the same renderer interface, if macOS or GPU culling ever needs it.

Finer: less blockiness, built on what already works

• Heightfield shapes. The 45° wedges are already a height function within a cell; generalise it to dome caps, quarter-rounds, rounded corners and arches, one primitive for all of them. Add side slopes, posts and pillars.
• Micro-blocks. A cell split into 4³ or 8³ sub-voxels for carved detail: rounded edges, domes, railings, sculpture. Only detailed cells pay, and far away they draw as a plain block. This grows what a cell is from (id, state) to (id, state, detail), so every system that stores or sends blocks has to carry it, with round-trip checks.
• Smooth terrain, the grid way first: slopes and corners placed automatically on generated hills, as a per-region trait so some land stays rugged. Truly organic ground (surface nets) is a research spike for a separate world type, not a change to this one.
• Rounder vehicles and objects. Start with shading that fakes a bevel on every model part, which is a shader-only change, then add rounded primitives (cylinders, rounded boxes, tapers, domes), then prototype a vehicle modelled as a fine voxel grid (meshed once, with AO, and instanced), comparing screenshots and the parked-city frame cost side by side.

21Principles

1. The instrument is wrong more often than the engine. A CPU meter read the game at 0% (a truncated process handle); a stall blamed on the code was the driver's vsync. Check the tool before believing its number.
2. The cost is almost always redundant work, not a bad algorithm. Parked vehicles re-posed on every column streamed in, the deep re-meshed for the whole view, a whole terrain re-uploaded every frame. Look for work done twice before rewriting anything.
3. A green test suite proves nothing unless a check asks the observable question. Read back pixels and positions, not internal flags.
4. A check never shown to fail isn't a check. Revert the line it protects and watch it go red. Never derive the bar from the setting it checks.
5. Ship a new render path off until an on-device frame rate says it's fine, and keep the old path as a pixel-identical oracle.
6. Python pays per call. Batch everything that repeats: one indirect draw, one numpy pass for all creatures, a flat array('f') for the HUD instead of 800,000 tuples.
7. Never key anything by object identity, and never draw from a global random stream during play. Both produced bugs that only showed up much later.
8. Where you put a player, ask for room and for ground. "Not inside a block" alone once put a driver on top of the hill above the tunnel they'd just dug.
9. If a line only runs while drawing, only a picture tests it. Take a screenshot after touching the draw path, and have a check read the code for the mistakes pictures find.
10. Look before you polish. A rough software drawing of a screen showed more in a minute than a day of reading its code.
11. Physics needs small steps. Anything fast moves further in one tick than the thing it should hit is wide. Split the step.
12. “It exists in the code” isn't “it exists in the world”. Count what actually gets generated.
13. Give a learner the concepts, not just the numbers. A simple scorer can't discover “this and that” on its own.
14. Code that only runs while drawing needs its own detection. Either render in the test or read the source for the failure shape. Neither happens by default.
15. Test the population, not only the unit. A generator whose every part passes its checks can still never produce a given output. Measure what comes out.
16. Budget what you can't see. A render cost cap in the gate stopped a 7× regression that no functional check would have noticed.
17. Discrete simulation needs step control. Anything that moves further in a tick than the thing it should hit is wide will tunnel. Substep adaptively.
18. Give models the domain concepts. Feature engineering beat more training for a simple learned player.
